Wrought Steel Buttwelding Fittings (ASME)
|
|

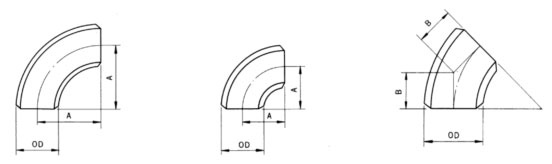

Long and Short Radius Elbows
|
|
|
|
ASME B16.9, B16.28
|
*CangZhou Ritia Standards
|
|
|
Nominal Pipe Size (NPS)
|
Outside
|
Center-to-End
|
|
Diameter
|
90 Elbows A
|
45 Elbows B
|
|
at Bevel
|
|
OD
|
Long Radius
|
Short Radius
|
Long Radius
|
Short Radius*
|
|
IN
|
MM
|
IN
|
MM
|
IN
|
MM
|
IN
|
MM
|
IN
|
MM
|
|
½
|
0.84
|
21.3
|
1.5
|
38
|
-
|
-
|
0.62
|
16
|
-
|
-
|
|
¾
|
1.05
|
26.7
|
1.12
|
29
|
-
|
-
|
0.44
|
11
|
-
|
-
|
|
1
|
1.32
|
33.4
|
1.5
|
38
|
1
|
25
|
0.88
|
22
|
0.41
|
10
|
|
1¼
|
1.66
|
42.2
|
1.88
|
48
|
1.25
|
32
|
1
|
25
|
0.52
|
13
|
|
1½
|
1.9
|
48.3
|
2.25
|
57
|
1.5
|
38
|
1.12
|
29
|
0.62
|
16
|
|
2
|
2.38
|
60.3
|
3
|
76
|
2
|
51
|
1.38
|
35
|
0.83
|
21
|
|
2½
|
2.88
|
73.0
|
3.75
|
95
|
2.5
|
64
|
1.75
|
44
|
1.04
|
26
|
|
3
|
3.5
|
88.9
|
4.5
|
114
|
3
|
76
|
2
|
51
|
1.24
|
32
|
|
3½
|
4
|
101.6
|
5.25
|
133
|
3.5
|
89
|
2.25
|
57
|
1.45
|
37
|
|
4
|
4.5
|
114.3
|
6
|
152
|
4
|
102
|
2.5
|
64
|
1.66
|
42
|
|
5
|
5.56
|
141.3
|
7.5
|
190
|
5
|
127
|
3.12
|
79
|
2.07
|
53
|
|
6
|
6.62
|
168.3
|
9
|
229
|
6
|
152
|
3.75
|
95
|
2.50
|
63
|
|
8
|
8.62
|
219.1
|
12
|
305
|
8
|
203
|
5
|
127
|
3.31
|
84
|
|
10
|
10.75
|
273.0
|
15
|
381
|
10
|
254
|
6.25
|
159
|
4.14
|
105
|
|
12
|
12.75
|
323.8
|
18
|
457
|
12
|
305
|
7.5
|
190
|
4.97
|
126
|
|
14
|
14
|
355.6
|
21
|
533
|
14
|
356
|
8.75
|
222
|
5.80
|
147
|
|
16
|
16
|
406.4
|
24
|
610
|
16
|
406
|
10
|
254
|
6.63
|
168
|
|
18
|
18
|
457
|
27
|
686
|
18
|
457
|
11.25
|
286
|
7.46
|
189
|
|
20
|
20
|
508
|
30
|
762
|
20
|
508
|
12.5
|
318
|
8.28
|
210
|
|
22
|
22
|
559
|
33
|
838
|
22
|
559
|
13.5
|
343
|
9.11
|
232
|
|
24
|
24
|
610
|
36
|
914
|
24
|
610
|
15
|
381
|
9.94
|
253
|
|
26
|
26
|
660
|
39
|
991
|
26
|
660
|
16
|
405
|
10.77
|
274
|
|
28
|
28
|
711
|
42
|
1067
|
28
|
711
|
17.25
|
438
|
11.60
|
295
|
|
30
|
30
|
762
|
45
|
1143
|
30
|
762
|
18.5
|
470
|
12.43
|
316
|
|
32
|
32
|
813
|
48
|
1219
|
32
|
813
|
19.75
|
502
|
14.89
|
378
|
|
34
|
34
|
864
|
51
|
1295
|
34
|
864
|
21
|
533
|
14.08
|
358
|
|
36
|
36
|
914
|
54
|
1372
|
36
|
914
|
22.25
|
565
|
14.91
|
379
|
|
38
|
38
|
965
|
57
|
1448
|
38
|
965
|
23.62
|
600
|
15.74
|
400
|
|
40
|
40
|
1016
|
60
|
1524
|
40
|
1016
|
24.88
|
632
|
16.57
|
421
|
|
42
|
42
|
1067
|
63
|
1600
|
42
|
1067
|
26
|
660
|
17.40
|
442
|
|
44
|
44
|
1118
|
66
|
1676
|
44
|
1118
|
27.38
|
695
|
18.23
|
463
|
|
46
|
46
|
1168
|
69
|
1753
|
46
|
1168
|
28.62
|
727
|
19.05
|
484
|
|
48
|
48
|
1219
|
72
|
1829
|
48
|
1219
|
29.88
|
759
|
19.88
|
505
|
|
